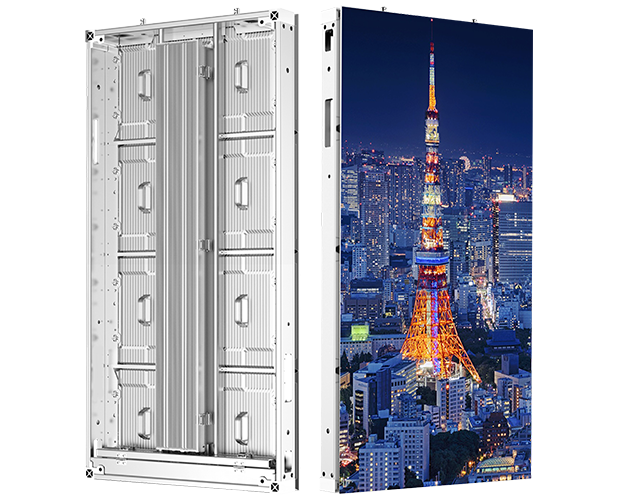

APRO-H Series

HD Curved Corner Fine Pitch Outdoor LED Screen


APRO-H Series is a fine pixel pitch outdoor fixed led with IP66 weatherproof rating.




APRO-H SERIES DESCRIPTION


The APRO-H Series outdoor LED display is engineered specifically to perform reliably in extreme hot & cold and high brightness applications. built with rugged, weatherproof full aluminum materials that protect against rain, snow, dust, and other environmental factors, ensuring consistent performance regardless of the environmental challenges.

Also, it uses advanced LED technology to reduce power consumption while delivering high-performance output. With features like advanced thermal management, high brightness up to 12000nits, and an IP66 rating weatherproof design, delivering contents clearly while captivating audience with stable performance.

A Pro Series can be customized with curved installation, ideal for giant 3D naked-eye solution, in addition, we provide complete package kit for one stop purchase. Our premium A Pro Series led screen, will create strong brand awareness for you




KEY FEATURES

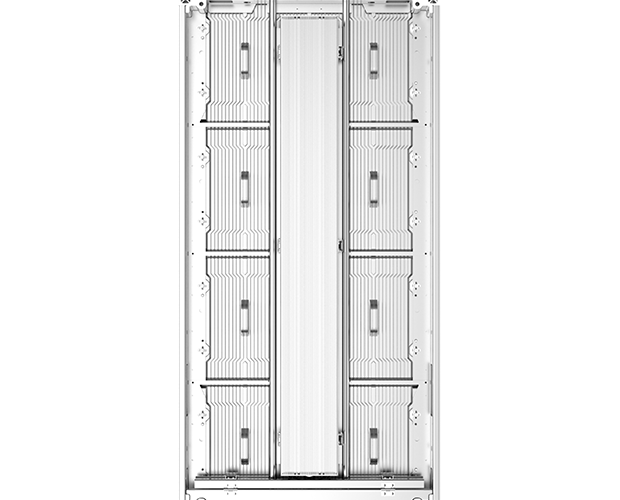

Seamless Excellence with Large LED Modules

Four vertical panels minimize creases compared to horizontal ones, enhancing overall uniformity and seamless splicing , while delivering superior performance for large-scale applications.


Ultimate Durability


Built for tough environments, the U Slim Series delivers exceptional durability—resisting impact, dust, and moisture for reliable, long-lasting performance

All in one Package



High Dynamic Range (HDR) Support


Displays are ready for High Dynamic Range content, maximins every pixel—delivering brighter whites, deeper blacks, and more true-to-life colors.

Ultra Slim Depth and Lightweight

The ultra-slim design—just 29mm thick and weighing only 5.5 kg—makes this LED screen a standout. Its sleek, lightweight build enables seamless integration into any venue, blending effortlessly with the environment.


4K 8K Resolution


Aluminum cabinets with a 16:9 aspect ratio, offering ultra-clear HD, 4K, and 8K visuals for an exceptional viewing experience.

Unmatched Deep Blacks

Micro LED technology delivers high brightness and efficient heat dissipation. The surface is coated with a durable black polymer material, ensuring exceptional black consistency.


The 4-layer Board Design


The 4-layer board boosts LED display stability, white balance, and anti-interference through advanced wiring, optimized power flow, and better signal integrity—delivering accurate, true-to-life visuals with no color cast.

Cool Screen

Using flip-chip COB and common cathode tech, the U Slim COB Series stays cool while delivering bright, flawless visuals.


Full-Front Serviceability


Allowing quick and easy maintenance of modules, power supplies, and internal components without needing rear access—ideal for space-constrained installations.

Memory On Module Management Optional

Memory on Module management is optional for color calibration. Automatic color calibration brings you a better visual experience. Intelligent module design automatically reads uploaded screen calibration data.


Flexible Installation Types



Accessories



U Slim COB SERIES SPECIFICATIONS




3840HZ

600NITS

281 Trillion

170° / 170°

20000:1


REFRESH RATE

BRIGHTNESS

COLOR CAPABILITY


VIEWING ANGLE


CONTRAST RATIO





U Slim COB SERIES 0.9MM INDOOR-USlim091 COB

PIXEL PITCH:0.9753mm

PIXEL CONFIGURATION & PACKAGE:COB

MODULE PIXEL RESOLUTION ( H X W):160x360dots

CABINET PIXEL RESOLUTION ( H X W):640x360dots

BRIGHTNESS: 400-450nits ( High Brightness optional)

REFRESH RATE:3840Hz

CABINET SIZE:600x337.5mm (23.62x13.28 inch)

CABINET WEIGHT:5.5Kgs ( 12.12lbs)

ACCESSIBILITY:Front Access

IP RATING:IP30

CONTRAST RATIO:20000:1

WORKING TEMPERATURE:-20℃~+40℃

U Slim COB SERIES 1.25MM INDOOR-USlim121 COB

PIXEL PITCH:1.25mm

PIXEL CONFIGURATION & PACKAGE:COB

MODULE PIXEL RESOLUTION ( H X W):120x270dots

CABINET PIXEL RESOLUTION ( H X W):480x270dots

BRIGHTNESS:500-600nits

REFRESH RATE:3840Hz

CABINET SIZE:600x337.5mm (23.62x13.28 inches)

CABINET WEIGHT:5.5Kgs ( 12.12lbs)

ACCESSIBILITY:Front Access

IP RATING:IP30

CONTRAST RATIO:8000:1

WORKING TEMPERATURE:-20℃~+40℃

U Slim COB SERIES 1.5625MM INDOOR-USlim151 COB

PIXEL PITCH:1.5625mm

PIXEL CONFIGURATION & PACKAGE:COB

MODULE PIXEL RESOLUTION ( H X W):96x216dots

CABINET PIXEL RESOLUTION ( H X W):384x216dots

BRIGHTNESS:500-600nits

REFRESH RATE:3840Hz

CABINET SIZE:600x337.5mm (23.62x13.28 inch)

CABINET WEIGHT:5.5Kgs ( 12.12lbs)

ACCESSIBILITY:Front Access

IP RATING:IP30

CONTRAST RATIO:8000:1

WORKING TEMPERATURE:-20℃~+40℃
