Q Series:

Capture every moment


Q Series transforms stadium sidelines with its outdoor LED screen,

delivering a vibrant HD experience that captivates every spectator.



Q SERIES DESCRIPTION


Q Series perimeter LED Displays are impressive, large-scale LED banners designed to light up stadiums, both outdoors and indoors.

•Flexible installation options let you showcase sponsor and advertiser messages on one or both sides of the stadium or arena. Thanks to their modular design, these displays fit perfectly along the long sides or behind the goalposts on any sports field.

•They are typically used in: stadiums, sports halls, racetracks, multi-purpose sports facilities, and other professional sports applications.

•Our most popular models include the P6, P8, and P10, each offering vibrant visuals to suit your stadium’s needs.



KEY FEATURES


Die Casting Magnesium Cabinet

Each panel weighs just 28kg, making it 30% lighter than standard iron cabinets. This not only cuts labor and shipping costs but also supports sustainability with recyclable, resource-saving materials. Precision CNC processing ensures exceptional flatness.


Humanization Design


The soft screen mask features a three-layer sloped design that cushions impacts and channels away rain with ease. The cabinet's rubber cover protector adds an extra layer of safety, shielding players from injury during the match.

Quick Installation with High Standard Aviation Connector

By saving installation time and using aviation connectors, you can guarantee your screen remains stable and dependable, even during the most critical events.


Curved Splicing Optional


The LED screen offers dynamic arc splicing from 0 to 20 degrees, unlocking creative new options for innovative stadium designs.

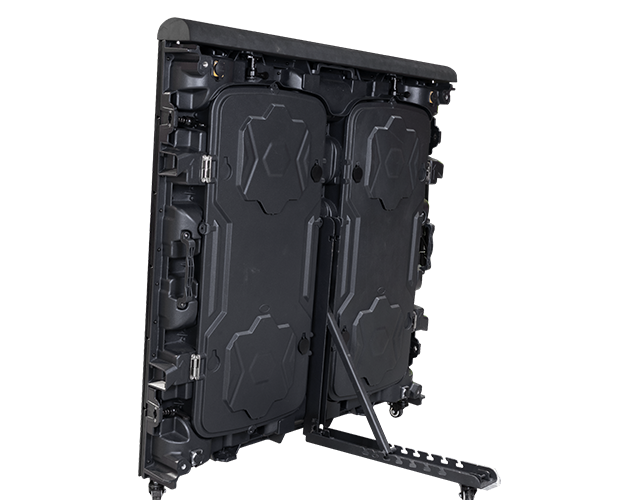

Independent Support Structure, Multi-angle Adjustment

The independent brackets offer flexible support, easily adjusting between 60° and 90° to perfectly accommodate both audience and cameras


Foldable Design


Easy to transport and cost-effective, this screen is perfect for advertising or stage rentals. Enjoy the flexibility of one screen for countless uses.


Rotating Design with Wheels For Emergency Exit

The Q Series features a rotating base and wheels, making perimeter LED display installations in stadiums ready for rapid emergency exits. This ensures swift and effortless escape, meeting the strict safety standards of most football associations.


High IP Rating


Whether you need it inside or out, this device rises to the occasion with cutting-edge outdoor SMD technology. Its full IP65 rating means it withstands water, no matter the weather.

Customized Flight Case Package , Easier and Convenient Move Around




Q SERIES SPECIFICATIONS




3840HZ

5500-8000NITS

281 Trillion

160° / 160°

5000:1


REFRESH RATE

BRIGHTNESS

COLOR CAPABILITY


VIEWING ANGLE


CONTRAST RATIO





Q SERIES 6.67MM SMD OUTDOOR-Q6

PIXEL PITCH:6.67

PIXEL CONFIGURATION & PACKAGE:3 in 1 SMD

MODULE PIXEL RESOLUTION ( H X W):48x24dots

CABINET PIXEL RESOLUTION ( H X W):168x168dots

BRIGHTNESS: 5500nits

REFRESH RATE:3840Hz

CABINET SIZE:960x960mm ( 37.79x37.79 inch)

CABINET WEIGHT:25Kgs ( 55.11 lbs)

ACCESSIBILITY:Rear Access

IP RATING:IP65

CONTRAST RATIO:5000:1

WORKING TEMPERATURE:-20℃~+40℃

Q SERIES 8MM SMD OUTDOOR-Q8

PIXEL PITCH:8mm

PIXEL CONFIGURATION & PACKAGE:3 in 1 SMD

MODULE PIXEL RESOLUTION ( H X W):40x20dots

CABINET PIXEL RESOLUTION ( H X W):120x120dots

BRIGHTNESS: 4500nits

REFRESH RATE:3840Hz

CABINET SIZE:960x960mm ( 37.79x37.79 inch)

CABINET WEIGHT:25Kgs ( 55.11 lbs)

ACCESSIBILITY:Rear Access

IP RATING:IP65

CONTRAST RATIO:5000:1

WORKING TEMPERATURE:-20℃~+40℃

Q SERIES 10MM SMD OUTDOOR-Q10

PIXEL PITCH:10mm

PIXEL CONFIGURATION & PACKAGE:3 in 1 SMD

MODULE PIXEL RESOLUTION ( H X W):32x16dots

CABINET PIXEL RESOLUTION ( H X W):96x96dots

BRIGHTNESS: 6500nits

REFRESH RATE:3840Hz

CABINET SIZE:960x960mm ( 37.79x37.79 inch)

CABINET WEIGHT:25Kgs ( 55.11 lbs)

ACCESSIBILITY:Rear Access

IP RATING:IP65

CONTRAST RATIO:5000:1

WORKING TEMPERATURE:-20℃~+40℃
