U Slim COB Series

Ultra Slim COB Micro LED Screen


Refine Super Slim and Seamless Solution for any indoor applications..




U Slim COB SERIES DESCRIPTION


The U Slim COB Series is an ultra-slim indoor LED display solution that combines sleek design with advanced Chip-on-Board (COB) technology for superior durability, energy efficiency, and vibrant performance. With a large 150×337.5mm vertical module and 600×337.5mm panel in a true 16:9 ratio, it enables seamless 4K/8K video walls with minimal bezels.

Available in P0.9, P1.2, and P1.5, the series offers crystal-clear visuals and smooth color accuracy, even at close viewing distances. Its COB “cool screen” design enhances contrast, supports HDR, and reduces power consumption—ideal for 24/7 indoor use.

Designed with front serviceability, power/data backup, and an all-in-one structure, it ensures easy maintenance and reliable operation. Installation is flexible with support for wall-mounted, hanging, and curved ground-standing setups.
Applications include:

  • Executive boardrooms & control rooms
  • High education
  • Broadcast studios
  • Luxury retail & hospitality
  • Art exhibitions & digital signage
  • Command & operations centers





KEY FEATURES


Seamless Excellence with Large LED Modules

Four vertical panels minimize creases compared to horizontal ones, enhancing overall uniformity and seamless splicing , while delivering superior performance for large-scale applications.


Ultimate Durability


Built for tough environments, the U Slim Series delivers exceptional durability—resisting impact, dust, and moisture for reliable, long-lasting performance

All in one Package



High Dynamic Range (HDR) Support


Displays are ready for High Dynamic Range content, maximins every pixel—delivering brighter whites, deeper blacks, and more true-to-life colors.

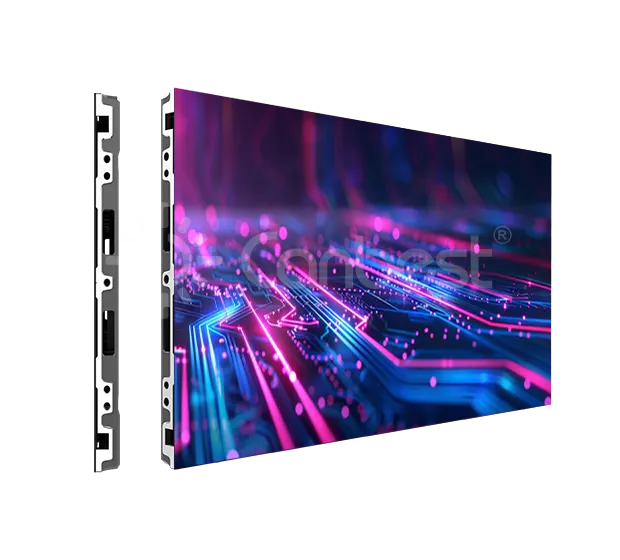

Ultra Slim Depth and Lightweight

The ultra-slim design—just 29mm thick and weighing only 5.5 kg—makes this LED screen a standout. Its sleek, lightweight build enables seamless integration into any venue, blending effortlessly with the environment.


4K 8K Resolution


Aluminum cabinets with a 16:9 aspect ratio, offering ultra-clear HD, 4K, and 8K visuals for an exceptional viewing experience.

Unmatched Deep Blacks

Micro LED technology delivers high brightness and efficient heat dissipation. The surface is coated with a durable black polymer material, ensuring exceptional black consistency.


The 4-layer Board Design


The 4-layer board boosts LED display stability, white balance, and anti-interference through advanced wiring, optimized power flow, and better signal integrity—delivering accurate, true-to-life visuals with no color cast.

Cool Screen

Using flip-chip COB and common cathode tech, the U Slim COB Series stays cool while delivering bright, flawless visuals.


Full-Front Serviceability


Allowing quick and easy maintenance of modules, power supplies, and internal components without needing rear access—ideal for space-constrained installations.

Memory On Module Management Optional

Memory on Module management is optional for color calibration. Automatic color calibration brings you a better visual experience. Intelligent module design automatically reads uploaded screen calibration data.

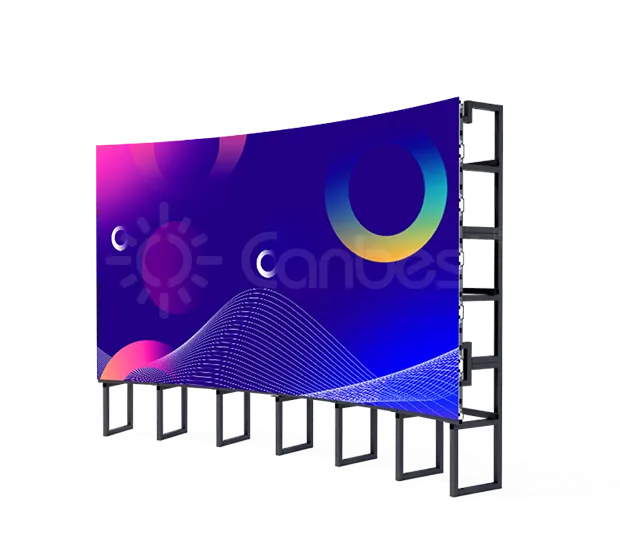

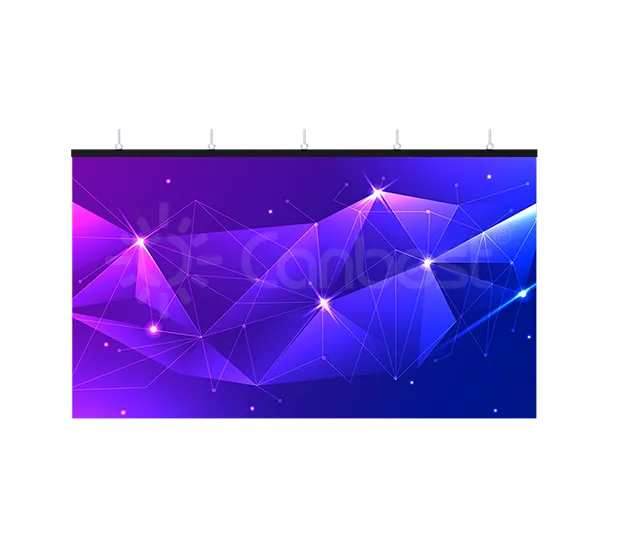

Flexible Installation Types



Accessories



U Slim COB SERIES SPECIFICATIONS




3840HZ

600NITS

281 Trillion

170° / 170°

20000:1


REFRESH RATE

BRIGHTNESS

COLOR CAPABILITY


VIEWING ANGLE


CONTRAST RATIO





U Slim COB SERIES 0.9MM INDOOR-USlim091 COB

PIXEL PITCH:0.9753mm

PIXEL CONFIGURATION & PACKAGE:COB

MODULE PIXEL RESOLUTION ( H X W):160x360dots

CABINET PIXEL RESOLUTION ( H X W):640x360dots

BRIGHTNESS: 400-450nits ( High Brightness optional)

REFRESH RATE:3840Hz

CABINET SIZE:600x337.5mm (23.62x13.28 inch)

CABINET WEIGHT:5.5Kgs ( 12.12lbs)

ACCESSIBILITY:Front Access

IP RATING:IP30

CONTRAST RATIO:20000:1

WORKING TEMPERATURE:-20℃~+40℃

U Slim COB SERIES 1.25MM INDOOR-USlim121 COB

PIXEL PITCH:1.25mm

PIXEL CONFIGURATION & PACKAGE:COB

MODULE PIXEL RESOLUTION ( H X W):120x270dots

CABINET PIXEL RESOLUTION ( H X W):480x270dots

BRIGHTNESS:500-600nits

REFRESH RATE:3840Hz

CABINET SIZE:600x337.5mm (23.62x13.28 inches)

CABINET WEIGHT:5.5Kgs ( 12.12lbs)

ACCESSIBILITY:Front Access

IP RATING:IP30

CONTRAST RATIO:8000:1

WORKING TEMPERATURE:-20℃~+40℃

U Slim COB SERIES 1.5625MM INDOOR-USlim151 COB

PIXEL PITCH:1.5625mm

PIXEL CONFIGURATION & PACKAGE:COB

MODULE PIXEL RESOLUTION ( H X W):96x216dots

CABINET PIXEL RESOLUTION ( H X W):384x216dots

BRIGHTNESS:500-600nits

REFRESH RATE:3840Hz

CABINET SIZE:600x337.5mm (23.62x13.28 inch)

CABINET WEIGHT:5.5Kgs ( 12.12lbs)

ACCESSIBILITY:Front Access

IP RATING:IP30

CONTRAST RATIO:8000:1

WORKING TEMPERATURE:-20℃~+40℃
