U Slim Series
Super Slim Direct View LED Wall
High-Definition Display with Exceptional Flexibility for Any Visual Content.
U Slim SERIES DESCRIPTION

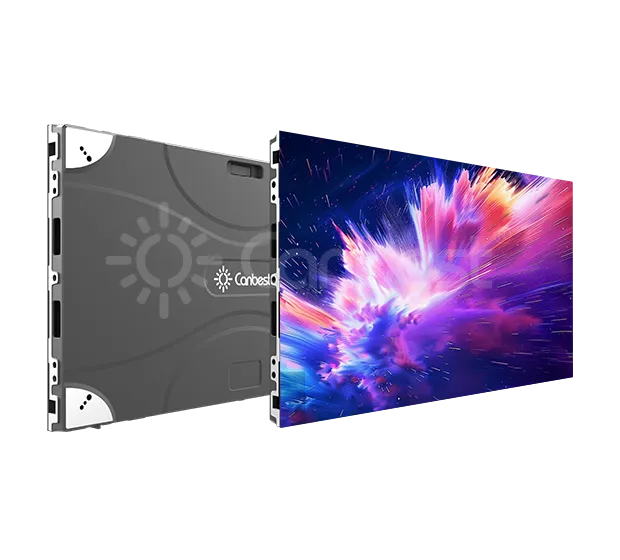

U Slim Series – Ultra Slim Indoor LED Video Wall
The U Slim Series is a high-end ultra-slim indoor LED video wall solution, engineered for elegance, precision, and performance. Designed with a super slim profile and large vertical module size of 150×337.5mm, it offers a seamless visual experience superior to traditional LED panels. Each panel measures 600×337.5mm with a native 16:9 aspect ratio, ideal for creating standard 4K or 8K resolution displays with stunning detail and clarity.
Available in P1.2 / P1.5 / P1.8, it delivers sharp visuals even at close distances. The all-in-one panel design simplifies installation and maintenance, with front access, power/data backup, and support for wall-mounted, hanging, or curved ground-standing setups.
Key Features:
Ultra-slim, elegant design
Seamless large vertical module (150×337.5mm)
True 16:9 panel (600×337.5mm)
4K/8K resolution ready
Pixel pitches: P1.2 / P1.5 / P1.8
Power & data backup
Front serviceable
All-in-one package
Flexible installation options
Ideal For applications: Boardrooms & control rooms,Luxury retail & hospitality,Broadcast studios,Art exhibits & digital signage
U Slim Series is the go-to choice for premium indoor spaces demanding sleek design, exceptional image clarity, and reliable performance.
KEY FEATURES

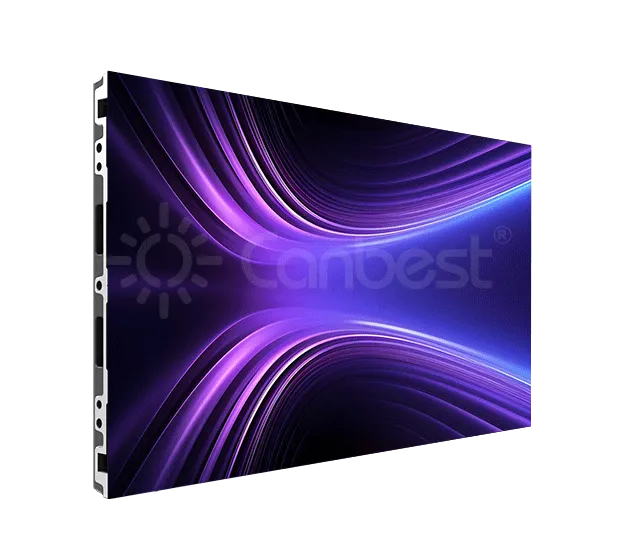

Ultra Slim Depth and Lightweight
The ultra-slim design—just 29mm thick and weighing only 5.5 kg—makes this LED screen a standout. Its sleek, lightweight build enables seamless integration into any venue, blending effortlessly with the environment. |  |
The 4-layer Board Design
 | The 4-layer board boosts LED display stability, white balance, and anti-interference through advanced wiring, optimized power flow, and better signal integrity—delivering accurate, true-to-life visuals with no color cast. |
Seamless Excellence with Large LED Modules
Four vertical panels minimize creases compared to horizontal ones, enhancing overall uniformity and seamless splicing , while delivering superior performance for large-scale applications. |  |
All in one Package
 |
4K 8K Resolution
Aluminum cabinets with a 16:9 aspect ratio, offering ultra-clear HD, 4K, and 8K visuals for an exceptional viewing experience. |  |
Full-Front Serviceability
 | Allowing quick and easy maintenance of modules, power supplies, and internal components without needing rear access—ideal for space-constrained installations. |
Power & Data Redundancy (Optional)
Ensures uninterrupted performance by providing backup signal and power routes—minimizing downtime in critical applications. |  |

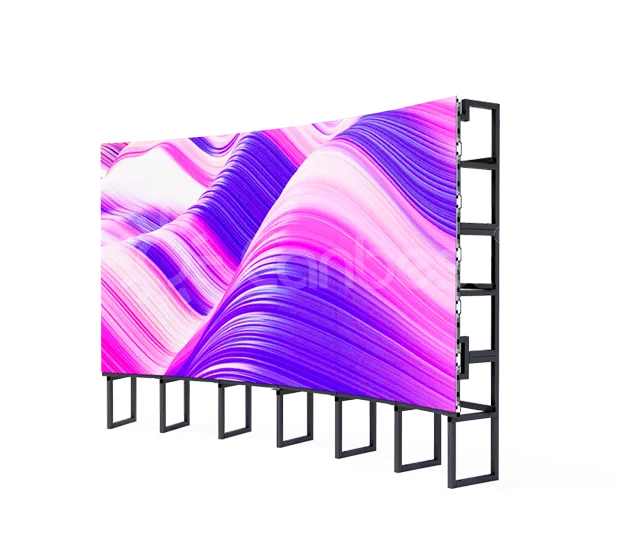

Flexible Installation Types
 | Support wall mounted, hanging installation and curved ground standing installation |
Memory On Module Management Optional
Memory on Module management is optional for color calibration. Automatic color calibration brings you a better visual experience. Intelligent module design automatically reads uploaded screen calibration data. |  |
Accessories
 |
U SLIM SERIES SPECIFICATIONS
3840HZ | 600NITS | 281 Trillion | 140° / 120° | 8000:1 |
REFRESH RATE | BRIGHTNESS | COLOR CAPABILITY | VIEWING ANGLE | CONTRAST RATIO |
U Slim SERIES 1.25MM INDOOR-USlim121
PIXEL PITCH:1.25mmPIXEL CONFIGURATION & PACKAGE:SMD1010MODULE PIXEL RESOLUTION ( H X W):120x270dotsCABINET PIXEL RESOLUTION ( H X W):480x270dotsBRIGHTNESS: 500-600nitsREFRESH RATE:3840Hz | CABINET SIZE:600x337.5mm (23.62x13.28 inch)CABINET WEIGHT:5.5Kgs ( 12.12lbs)ACCESSIBILITY:Front AccessIP RATING:IP30CONTRAST RATIO:8000:1WORKING TEMPERATURE:-20℃~+40℃ |
U Slim SERIES 1.5625MM INDOOR-USlim151
PIXEL PITCH:1.5625mmPIXEL CONFIGURATION & PACKAGE:SMD1212MODULE PIXEL RESOLUTION ( H X W):96x216dotsCABINET PIXEL RESOLUTION ( H X W):384x216dotsBRIGHTNESS:500-600nitsREFRESH RATE:3840Hz | CABINET SIZE:600x337.5mm (23.62x13.28 inch)CABINET WEIGHT:5.5Kgs ( 12.12lbs)ACCESSIBILITY:Front AccessIP RATING:IP30CONTRAST RATIO:8000:1WORKING TEMPERATURE:-20℃~+40℃ |
U Slim SERIES 1.875MM INDOOR-USlim181
PIXEL PITCH:1.875mmPIXEL CONFIGURATION & PACKAGE:SMD1515MODULE PIXEL RESOLUTION ( H X W):80x180dotsCABINET PIXEL RESOLUTION ( H X W):320x180dotsBRIGHTNESS:500-600nitsREFRESH RATE:3840Hz | CABINET SIZE:600x337.5mm (23.62x13.28 inch)CABINET WEIGHT:5.5Kgs ( 12.12lbs)ACCESSIBILITY:Front AccessIP RATING:IP30CONTRAST RATIO:8000:1WORKING TEMPERATURE:-20℃~+40℃ |
